Go Microservice Part I - Overview

We will develop a contact application that will retrieve contact details based on the input id.

App contains the routing details that is which controller function to call based on user request.

Application Configuration contains all the configuration details like Server PORT, Data Base connection details, etc. In our application, we have used it to store the PORT number.

Controller takes care of taking the user request, validates the input parameters, and sending it to the required Service and rely on the Service to process the user request. Once the data is processed Controller receives the data from the Service and send it the specified View to present to the user.

Contact Service process the contact detail information from the Model and send it back to the Controller. In the real world, it will call the DAO Data Access Layer and process the data before sending it to the Controller. Domain will connect with the Data Base for the required information and send it back to the Service.

Model or Domain has details about the structure of the model object. Service(s) communicate with DAO to get the Model Data.

Views are usually represented by HTML but in our application, we will just through the response using the Response object.

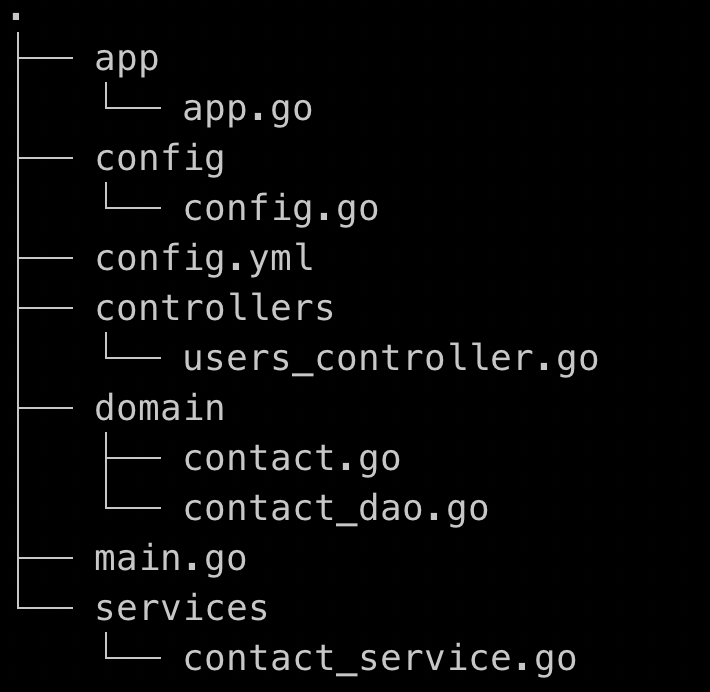

We will be having the below folder structure for our contacts application.

main.go contains the start app function.

app.go contains the application routing and config mechanism as well for sending a request to the Controller.

config.yml has the application config.

config/ contains the code which will read the configuration from config.yml and send it the application.

controllers/ has the Controller code.

services/ has the actual Business Logic.

domain/ has the Model object as well as DAO for accessing the Database.

Let’s start with writing the application in parts in further posts.

Go to Go MVC Part II to get started with the application configuration.
